Measurement
Cable Measuring Solutions
AESA Cortaillod (Switzerland)
電力ケーブル導体用抵抗＆断面測定
Solutions and Expertise for the Cable Industry
30 years of experience in the cable industry allows AESA Cortaillod to offer you the benefits of its skills and complete solutions for testing and quality control of telephone and LAN cabling as well as power lines or coaxial cabling. Acknowledged leaders within the sector, AESA is here to help you run your business with maximum efficiency by offering you only the most productive solutions.
Products
AESA offers a full range of test systems for cable producers, which can be divided in three main fields:
LAN and telecom cables :Automatic systems to measure all low and high frequency parameters:
RCKE, attenuation, crosstalk, impedance, transfer impedance, LCL, etc… up to 2 GHz.Automatic systems for measuring insulation resistance and execution of high voltage tests.
Automatic coaxial cable measuring systems.
Powerful software package with integrated database management.
Power and installation cables :Resistance and cross-section meter for aluminium strands up to 1200mm2 and copper strands up to 2000mm2.
Wire and conductor resistance bridge for up to 500mm2.
Integrated Quality Management software CIQ 3.0 :Modular and open architecture, efficient data acquisition, flexible configuration, all features are designed for easy set-up and training.

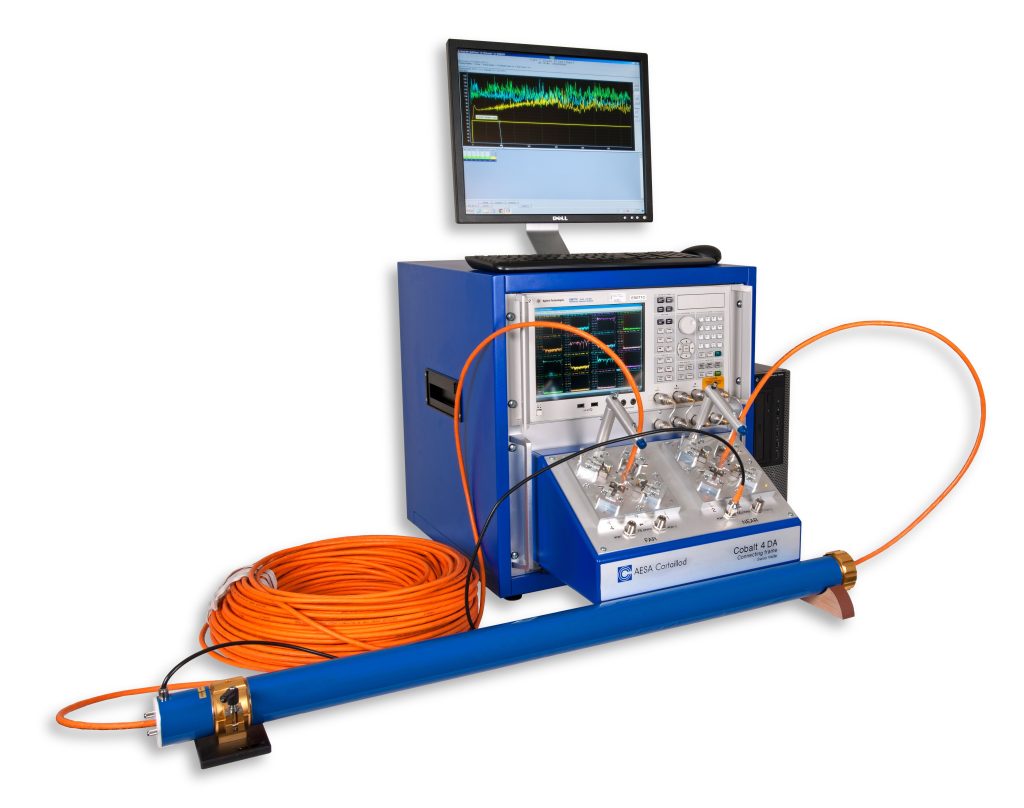

4.5GHz Automatic LAN tester

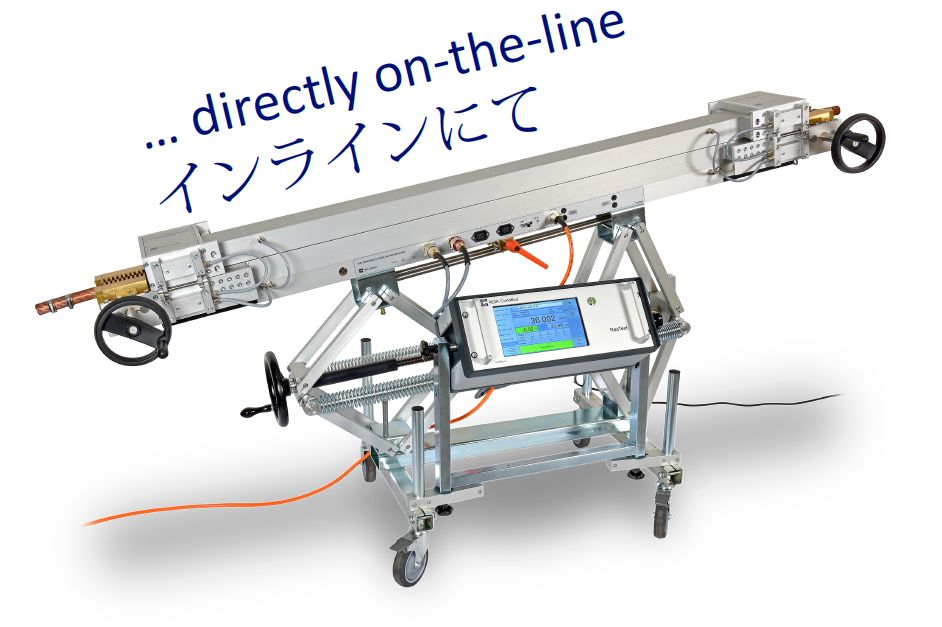

Power Cable Resistance meter
High Current Monitoring (10kA ～ 500kA)
Dynamp LLC. (Columbus, Ohio, USA)
Current measurement from 10kA to 500kA
The leading global electrical measurement technology provider for electro-industry.
Over 40 years of innovation combining real world know-how with advanced technology to provide the most advanced & reliable high power measurement and analysis systems.
With more than 300 systems in service in Japan, 10’000 sold worldwide, Dynamp made high-current systems have been the market leader for as long as high-current rectifiers use diodes and thyristors. Today’s replacement systems boost 0.1% accuracy and latest technology such as optical fiber based systems are available.

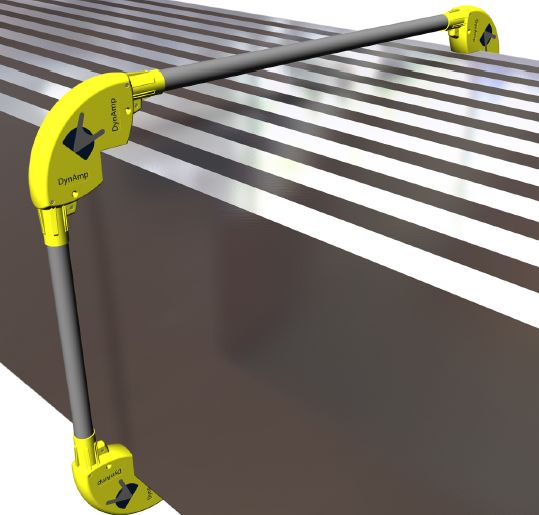

LKCO: High-Accuracy Fiber Optic based Current Measurement System (up to 500kA, bi-directional)

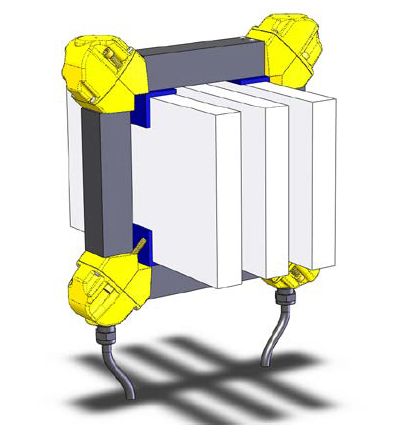

LKAT2: High Current Measurement System with Rectifier Protection Function (5kA to 150kA, bi-directional)
パワーエレクトロニクスメジャーメント社 “PEM” （U.K.）
AC 電流プローブ 300mA ～500kA / 50MHzまで
CWTロゴスキー電流プローブは、300mAから数百kAの範囲で0.1 Hz未満から50 MHzを超える AC電流の測定に適しています。 最大10kVピークまでの絶縁耐圧で数タイプのモデルが利用可能です。 TO-220パッケージ測定（CWTUM）の場合、コイルサイズは断面積1.7mmまで、SICパワー半導体測定（CWTMini50HF）等では最大50MHzの周波数まで対応しています。
測定課題の詳細をお問い合わせください。貴社の測定アプリケーションに適合した最適な製品の選択をお手伝いします。
